LED Area Lights

Our LED Area Lights are available in multiple mountings and fixture configurations, and compatible with our LiteSmart app for further energy management abilities.

PERFORMANCE
AND EFFICIENCY

The Perfect Blend

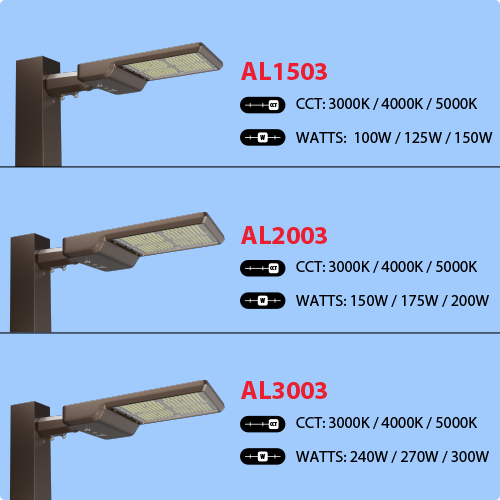

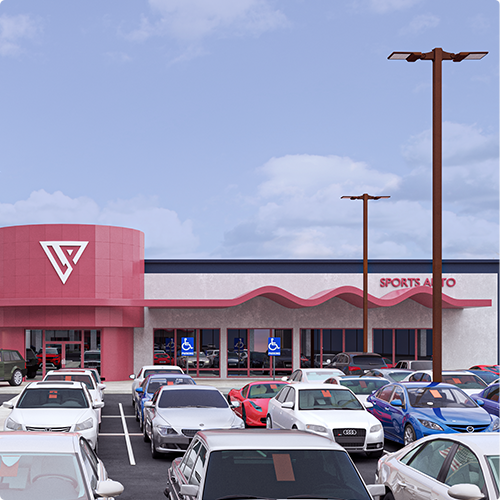

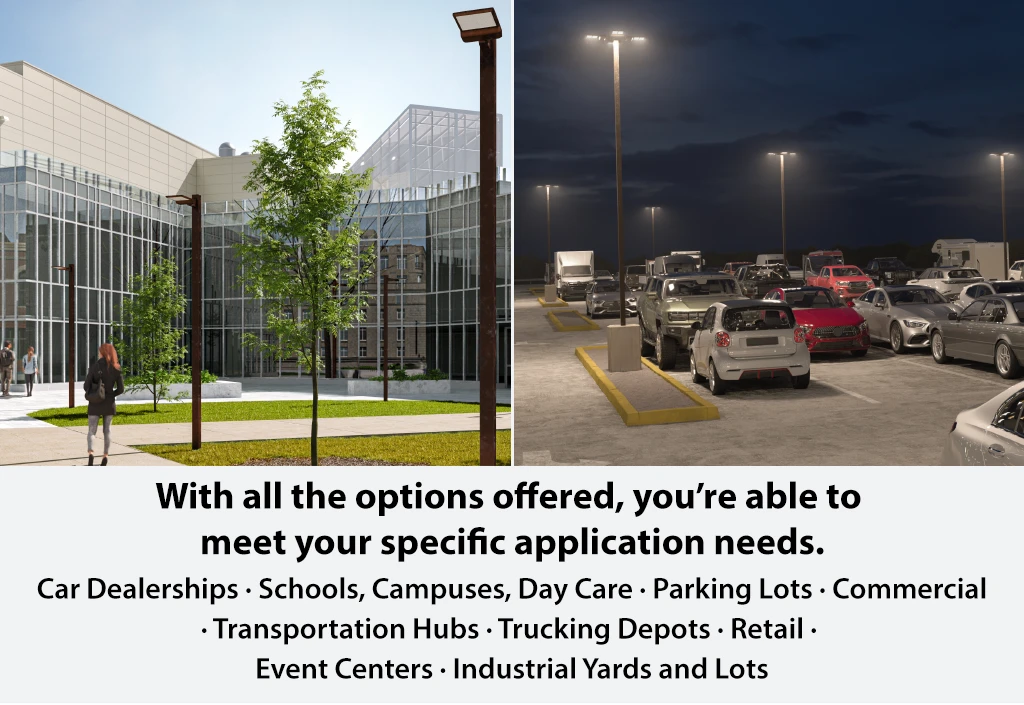

Ideal for lighting everything from parking lots and retail centers to car dealerships, educational facilities, and more, Litetronics’ three new LED area lights are each available in three field-adjustable wattages and three color temperatures to provide the ultimate in versatility.

FIELD ADJUSTABLE
OUTPUT AND COLOR

Field adjustable features for output and CCT allows for the flexibility of controlling the fixture to your exact needs.

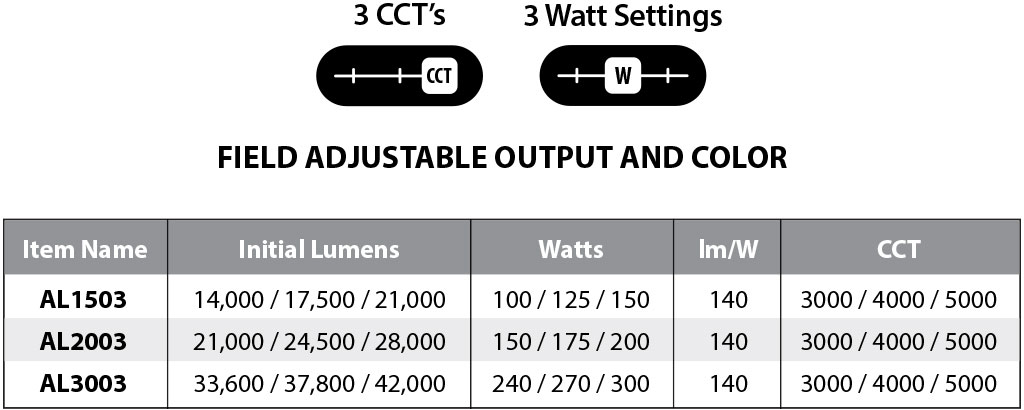

Field adjustable output and color chart

FEATURES

Area light features

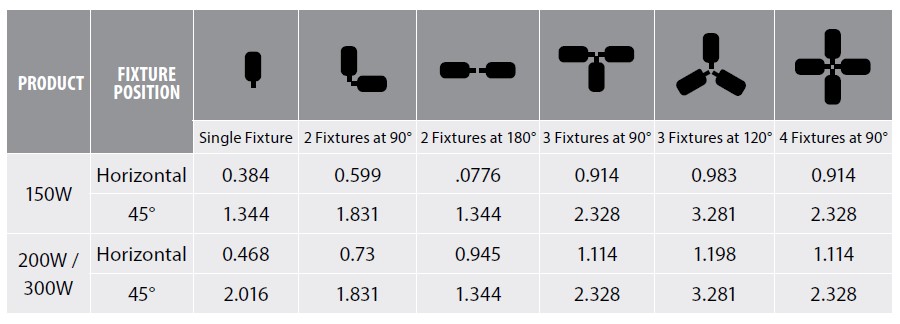

CONFIGURED TO YOUR NEEDS

From single to double to quad configurations, Litetronics Area Lights can accommodate the needed number of fixtures per pole to meet all application needs.


Note: Litetronics does not manufacture or sell poles.

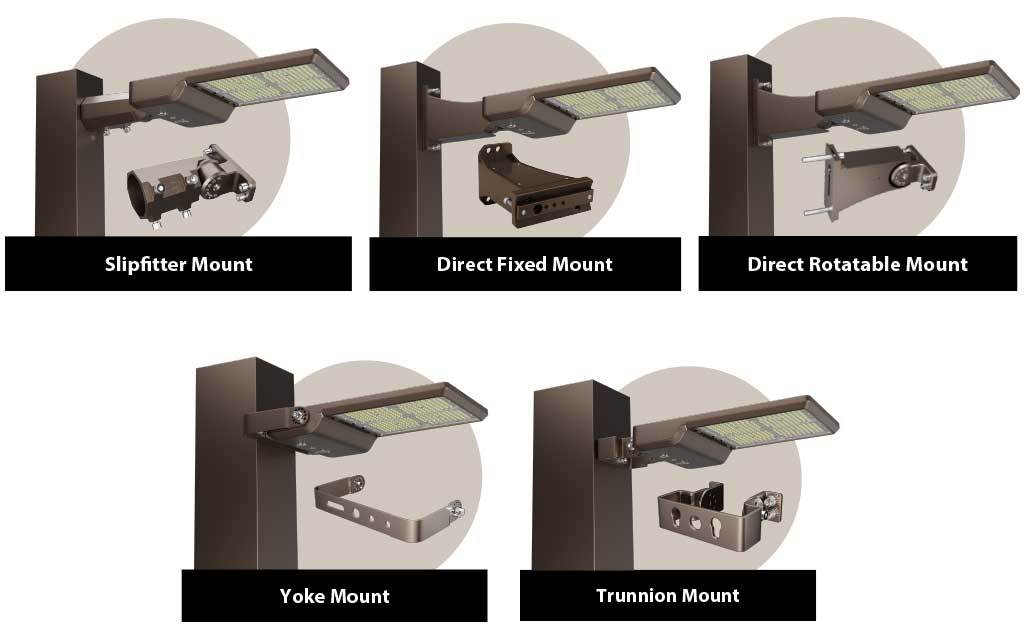

MOUNTING OPTIONS

Meet your needs with mounting options for both round and square poles (Refer to spec sheet for available configurations).

NOTE: Different mounting options are offered by product. Refer to spec sheet.

LED Area Light Mount Options

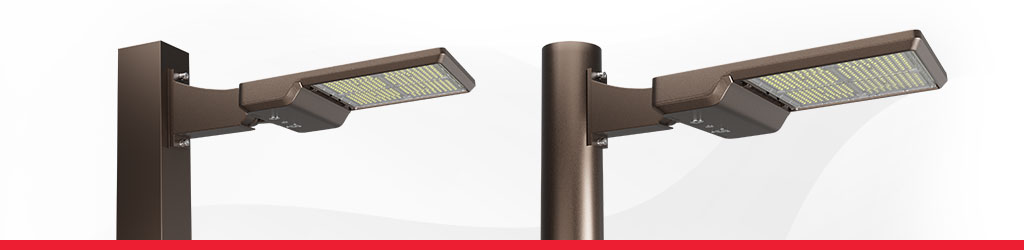

SQUARE & ROUND POLE OPTIONS

Easily meet your application needs with both round and square poles. (Refer to spec sheet for available configurations).

Pole or square mount options

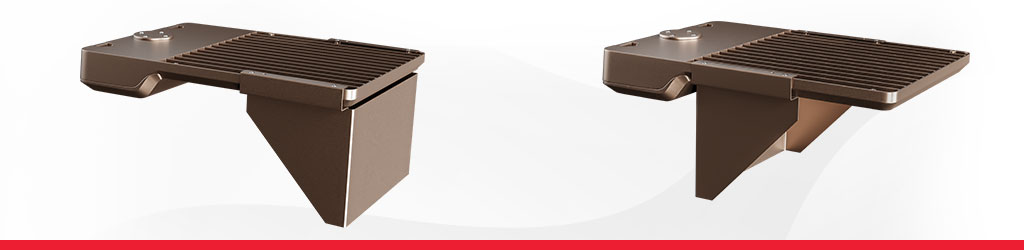

GLARE SHIELDS

Optional Shields to meet code and ordinance.

Glare shield options

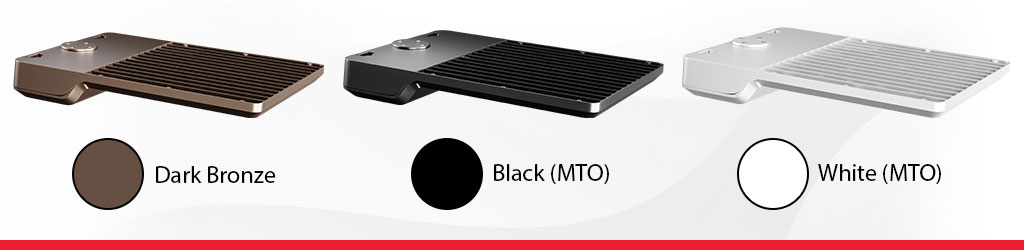

COLOR OPTIONS

Dark Bronze finish standard. Black and White (MTO).

Color options

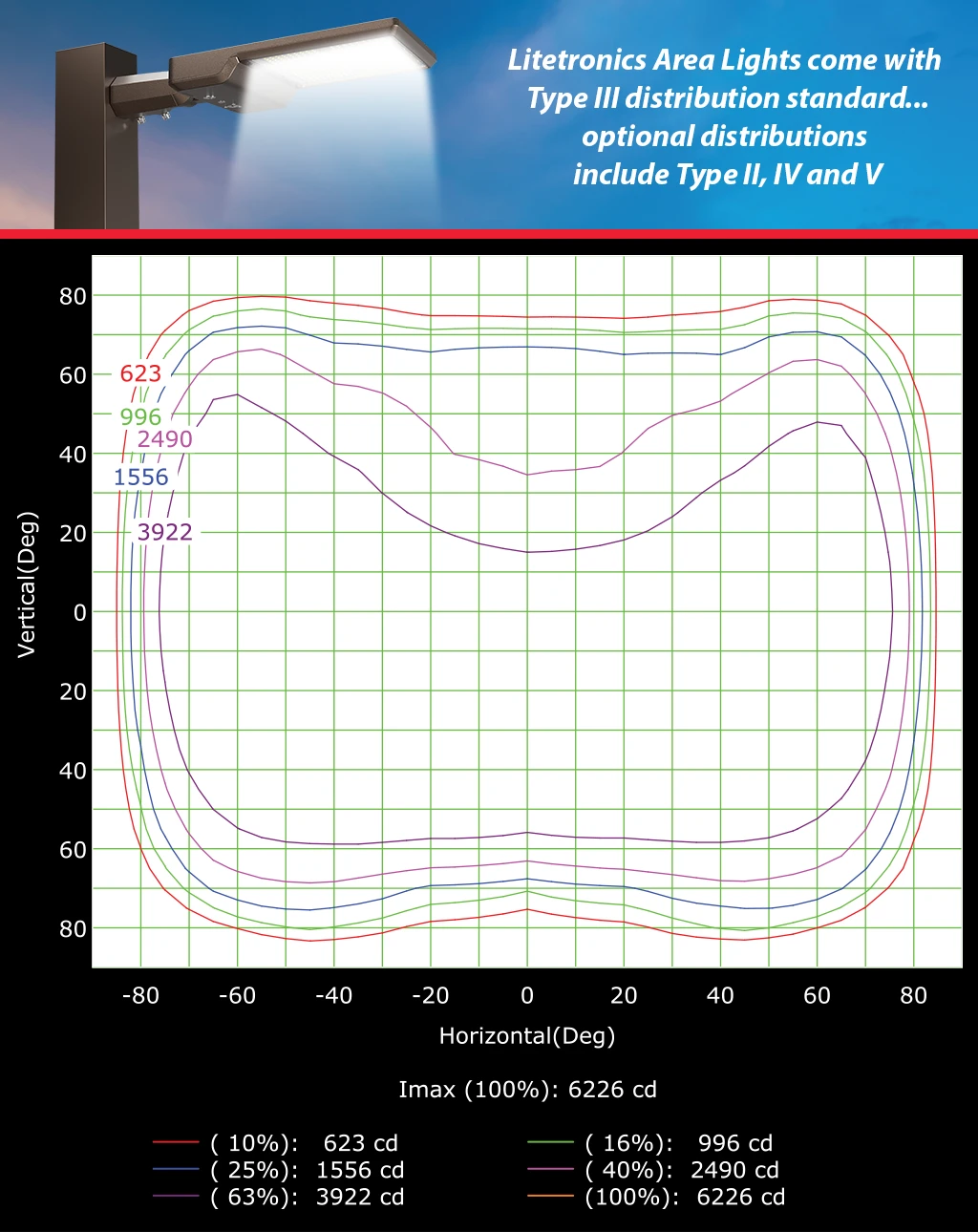

AREA LIGHT
DISTRIBUTION PATTERNS

You have unique needs. Each application calls for a specific distribution of light taking into consideration the area and even type of surface.

Litetronics LED Area Lights come with Type III distribution standard... optional distributions include Type II, IV and V

SENSORS AND CONTROLS

LIMITLESS OPTIONS

A wide option of sensor and control products allows you to manipulate, commission and control Litetronics Area Lights, furthering the variety of flexible options offered.

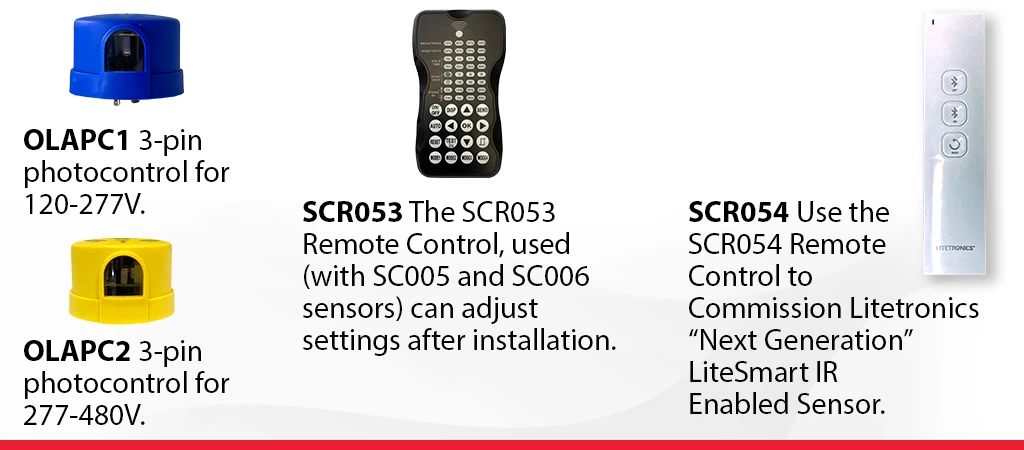

 SC005 Plugin Sensor. SC006 Plugin Microwave Sensor. SC008 Plugin Bluetooth PIR Sensor.

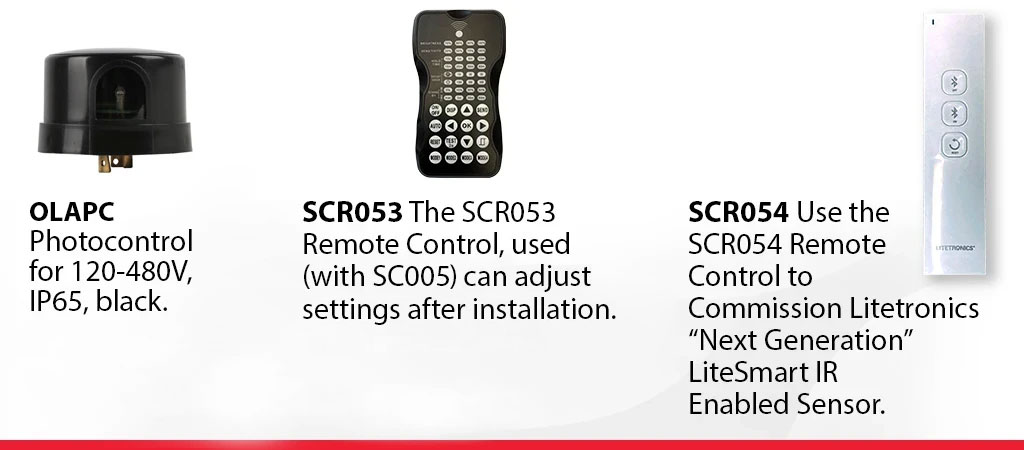

OLAPC1 3-Pin Photocontrol for 120V-277V and 277-480V (MTO). SCR053 Remote control used with SC005 and SC006. SCR054 Remote control to commission Litetronics IR enabled sensor.

Note: 3-pin shorting cap and pluggable sensor socket comes standard.

Static overlay
LiteSmart is a mobile app that enables total management of lighting systems at the touch of your fingers.
Set up and manage
your space with LiteSmart.
DOWNLOAD NOW!
Download App On The Apple Store
Get It On Google Play

Features and Specs

Features

  • Selectable wattage: AL1503: 100/125/150
  • Selectable wattage: AL2003: 150/175/200
  • Selectable wattage: AL3003: 240/270/300
  • Field Selectable CCT: (3000K, 4000K, 5000K)
  • Slipfitter mount standard (trunnion, yoke, direct and universal mountings optional)
  • Type III distribution (Type II, IV, & V distributions optional)
  • Optional Shields to meet code and ordinance
  • Pluggable sensor socket
  • Compatibility with LiteSmart mobile app

Specs

  • Average rated life: 50,000 hours (@L70)
  • Warranty: 5 years
  • Operating temp: -40F to 122°F (-40°C to 50°C)
  • LPW: 140
  • CRI: 80
  • Input voltage: 120-277V (480V option MTO)
  • Input frequency: 50/60Hz
  • Power factor: ≥0.95
  • THD: ≤20%
  • Surge protection: 10KV (20KV Accessory Option)
  • Dimming: 0-10V with LiteSmart Bluetooth control system
  • Whip/Cord: 3.5'
  • Sensor: Plug-In (Choice of MW, PIR, Bluetooth)
  • Beam angle: 155°
  • Lens: Polycarbonate frosted
  • Color: Dark Bronze
  • IP rating: 65
  • Location Rating: Wet
  • Outdoor Rated: Yes
  • IC rated: No
  • UL listed: (Pending)
  • FCC listed: Yes
  • RoHS compliant: Yes
  • 5.1 Premium (Pending)>

Wattage Lumens

Model# AL1503

  • Size: 22.6" x 10.4" x 3.31"
  • Weight: 15.87 lbs.
  • Wattages: 100 | 125 | 150
  • CCT: 3000 | 4000 | 5000
  • Lumens: 14,000 | 17,500 | 21,000

Model # AL2003

  • Size: 25.7" x 13.1" x 3.31"
  • Weight: 22.49 lbs.
  • Wattages: 150 | 175 | 200
  • CCT: 3000 | 4000 | 5000
  • Lumens 21,000 | 24,500 | 28,000

Model # AL3003

  • Size: 25.7" x 13.1" x 3.31"
  • Weight: 22.49 lbs.
  • Wattages: 240 | 270 | 300
  • CCT: 3000 | 4000 | 5000
  • Lumens: 33,600 | 37,800 | 42,000

For More Information

Call 1-800-860-3392 or ask about our 60 day free trial to see the LED Area Lights in all their glory first hand.
