LED Light Panel Retrofit Kit With Sensor Socket

Upgrade existing high cost and energy inefficient fixtures with our easy-to-install panel retrofit fixture. See how easy it is to drastically improve ROI on all your projects.

YOU’RE PERFORMANCE AND ENERGY SAVINGS ANSWER

IMPROVE LIGHT LEVELS AND REDUCE MAINTENANCE COSTS

Our LED Light Panel Retrofit Series features field-selectable wattage and CCT, enabling a wide range of output options from a single fixture.

Each fixture includes up to 5 selectable watt settings and 4 options for color temperature (3000K/3500K/4000K/5000K).

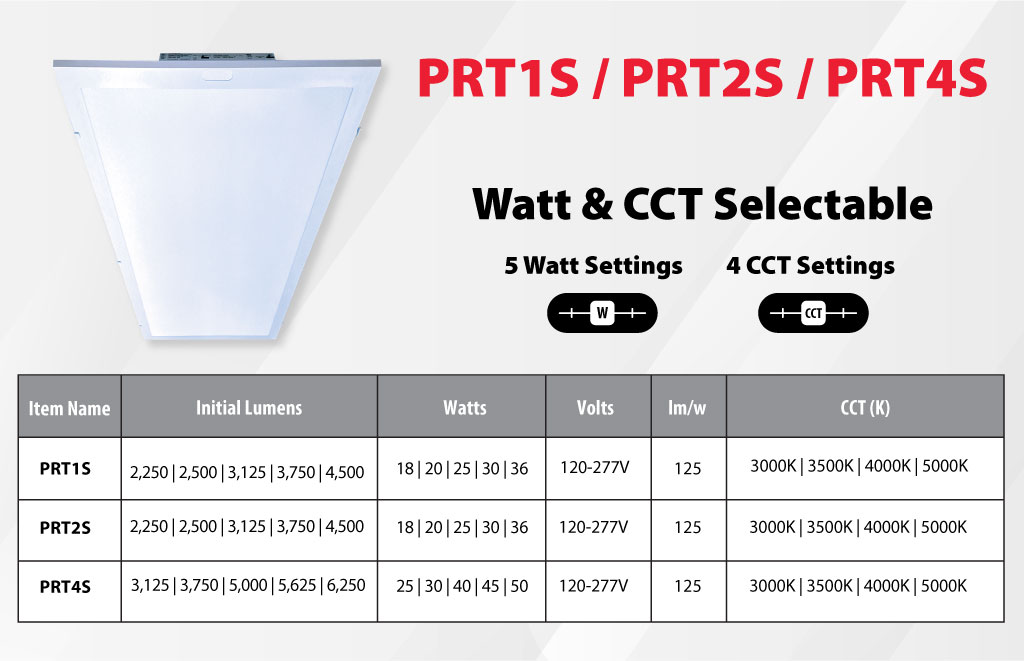

Watt and CCT Selectable Settings for PT1S, PT2S and PT4S LED Light Panels with Sensor Socket.

Get Pricing



TAKE ENERGY SAVINGS AND CONTROL TO A NEW LEVEL

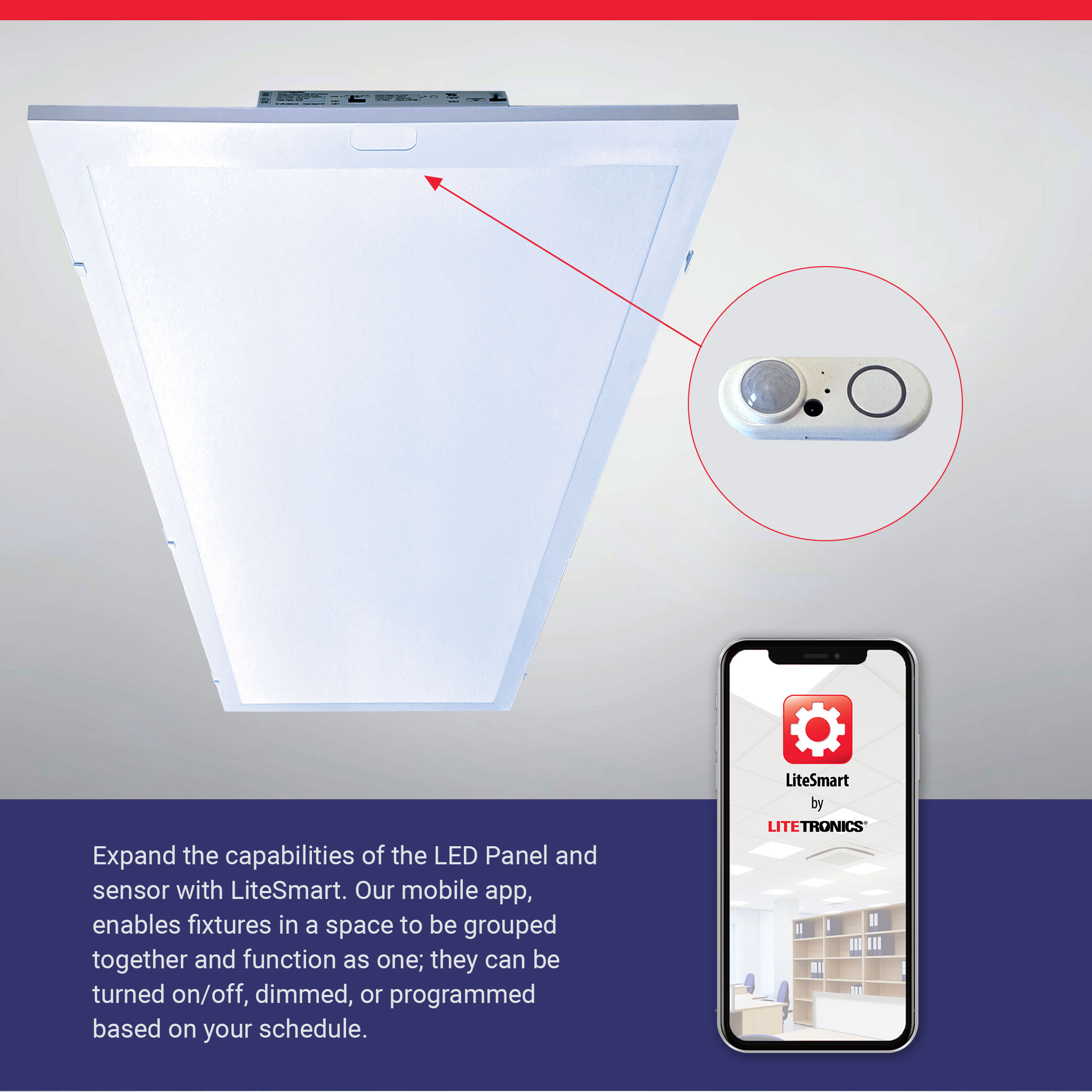

Expand the capabilities of the LED Light Panel Retrofit with a sensor (sold separately) for occupancy sensing and daylight harvesting capabilities which decreases energy use, and costs.

The SC010 plug-in PIR sensor enables wireless control of the panel or group of panels through the LiteSmart mobile app.

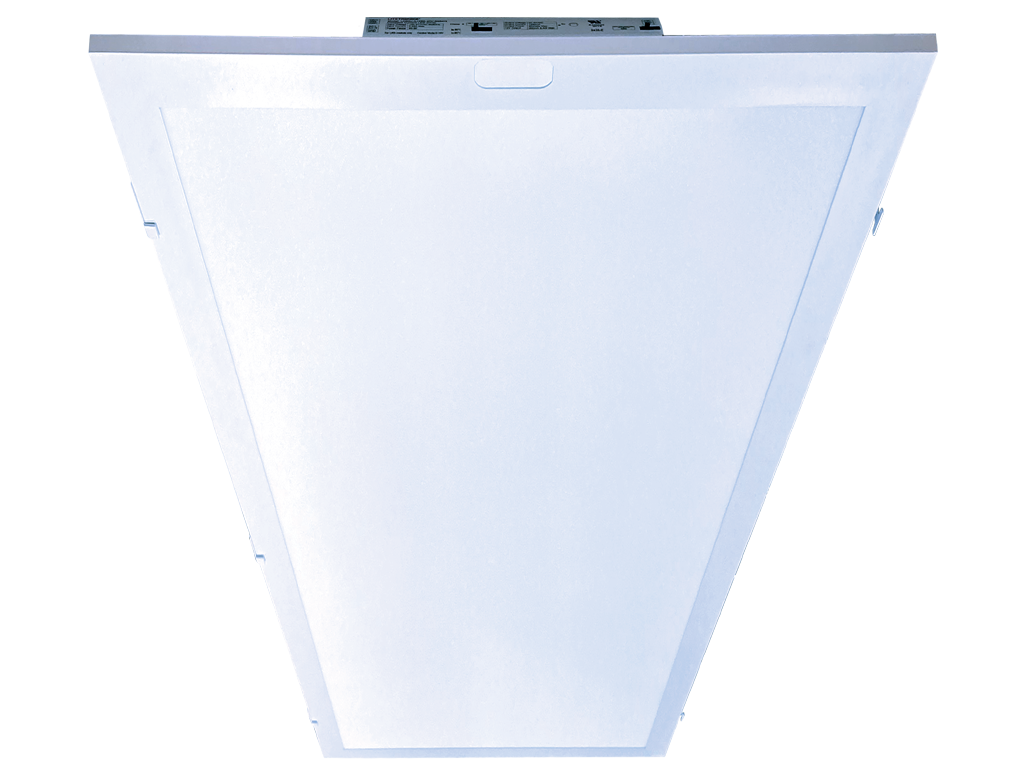

LED Light Panel with Sensor Socket.

FEATURES AND SPECS

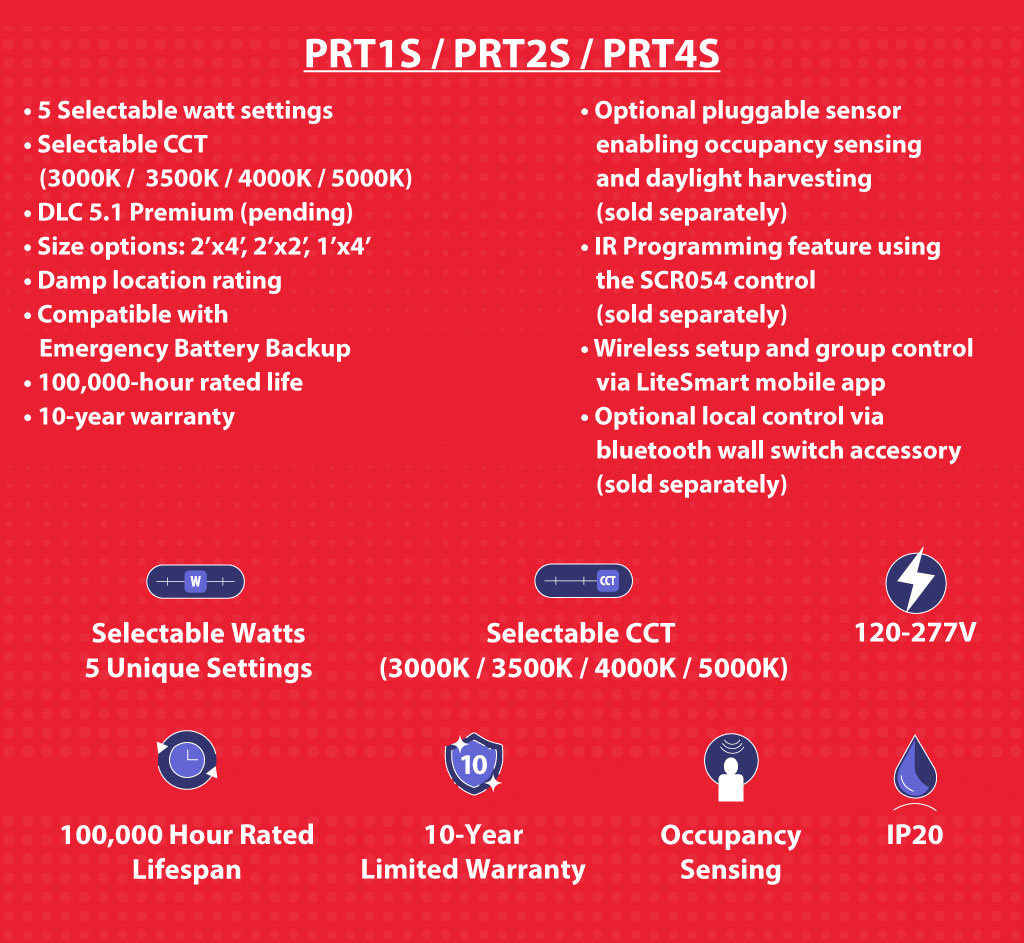

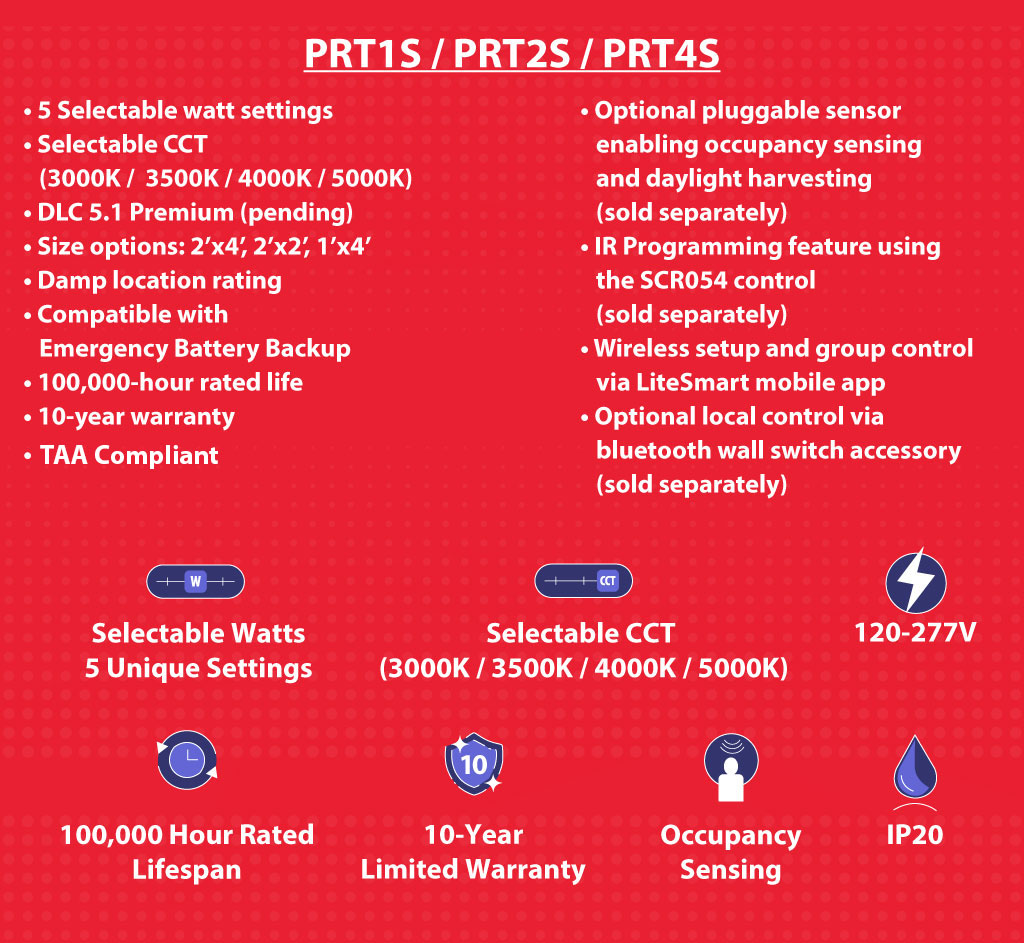

LED Light Panel with Sensor Socket List of Features and Specs.

Download Spec Sheet

MARKETS SERVED

The LED Light Panel Retrofit with sensor socket is a great solution for a variety of markets and environment.

  • Schools and Universities
  • Offices and Municipal Buildings
  • Healthcare
  • Commercial
  • Retail
  • Industrial

LED Light Pane Retrofit markets served.

TAKE CONTROL OF
YOUR LIGHTING SYSTEM

With our LiteSmart app, you can commission fixtures in a space to be grouped together and function as one; they can be turned on/off, dimmed, or programmed based on your schedule. Settings can be adjusted and pushed live in seconds. Custom scene configurations can also be created to meet the various needs of the space.

  • Total control over your lighting system
  • Quick and easy changes that can be implemented in seconds across a group of fixtures
  • Further energy reduction via occupancy sensing, daylight harvesting and max wattage control
  • Ability to create custom scenes based on specific needs, such as presentations
  • Time scheduling that sets hours of operation per day

THESE BLUETOOTH SENSOR, CONTROL AND SWITCHES OFFER CONTROL OF YOUR FIXTURES WIRELESSLY.

List of compatible control and sensor for LED Light Panel with sensor socket.

List of compatible bluetooth wireless control switches.

Slide
DOWNLOAD NOW
Apple App Store Button
Google Play Store Button

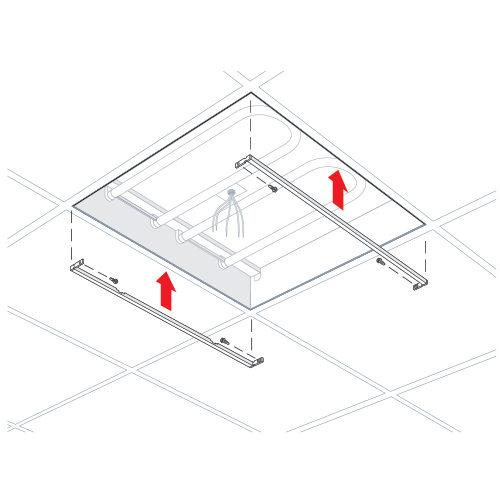

EASY INSTALLATION BY DESIGN

This LED retrofit panel can accommodate all standard sizes of fluorescent troffers, including 1’ x 4’, 2’ x 2’, 2’ x 4’.

It’s patented design makes installation simple and quick. The kit can be installed by one person in less than two minutes, without breaking into the ceiling plenum.

Let's Talk Numbers

Our commercial LED light panel retrofits are moderately priced but loaded with all the options you’ll need to achieve optimal efficiency. Based on upfront cost, available rebates and an easy installation process, your project can be completed for less than you think.

So, what are you waiting for?

Request Pricing

To find the potential ROI for your upcoming project, use our Payback Calculator

For more resources on the LED Light Panel, visit our Resource Center

FAQs

Below are a few of the most frequently asked questions about the LED Light Panel Retrofit.

Q:Does this new product fit in both standard and narrow grids?
A:

Our current offering is designed for standard grids only.

Q:Where can I find the LiteSmart App?
A:

Go to the Apple or Android store to download.
