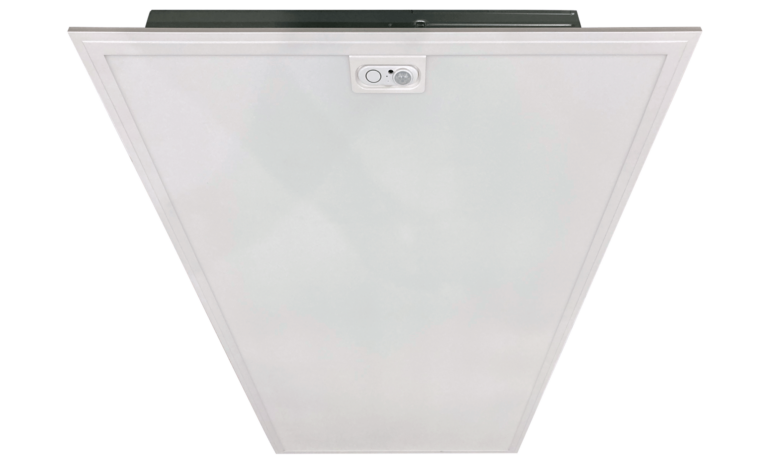

2X4 SMART LIGHT PANEL WITH SELECTABLE CCT AND TUNABLE WATTAGE

Item No: PT4AN

Combining top-of-the-line efficiency with a clean, modern design, the LED Light Panel is an ideal solution for indoor commercial spaces, including grid ceiling applications.

The Smart Light Panel brings a new level of control and convenience to indoor lighting. Occupancy sensing and daylight harvesting capabilities automatically decrease energy use, and each feature can be customized to the preference of the occupants. Setup is easy with the LiteSmart mobile app, which enables group control, custom settings and scene configurations, all via bluetooth technology from your own mobile device. This PT*AN generation allows for quick fixture commissioning via IR Programming feature using the SCR054 control (sold separately).

Installation of the fixture is simple and quick; this LED panel fits seemlessly into all standard 2’ x 4’, 2’ x 2’ or 1’ x 4’ grid ceiling layouts. It can also be surface and suspension mounted, or recessed into drywall ceilings. Each room or group of fixtures can be controlled via LiteSmart app or by a wall mounted battery or solar-powered bluetooth switch.

Request Pricing

2x4 led smart light panel selectable cct tunable watts

Product Information:

Shape:
2x4
Brand:
LED Light Panel
Watts:
50
Voltage:
120-277
Average Rated Life:
100000
Luminaire Lumens:
4500
CRI:
80
Color Temp:
3500K | 4000K | 5000K
Finish:
White
Operating Temp:
-4°F to 104°F (-20°C to 40°C)
Power Factor:
>.95
Warranty:
10 Years
Beam Angle:
110°
THD:
≤ 20%
Lumens/Watt:
125
Suitable for Damp Locations:
Yes

Applications:

  • Grid Ceiling
  • Surface Mount
  • Suspended Mount
  • Recessed Drywall

Features:

  • FCC
  • Instant On
  • Instant Bright
  • Dimmable

Markets:

  • Schools
  • Universities
  • Offices
  • Municipal Buildings
  • Healthcare
