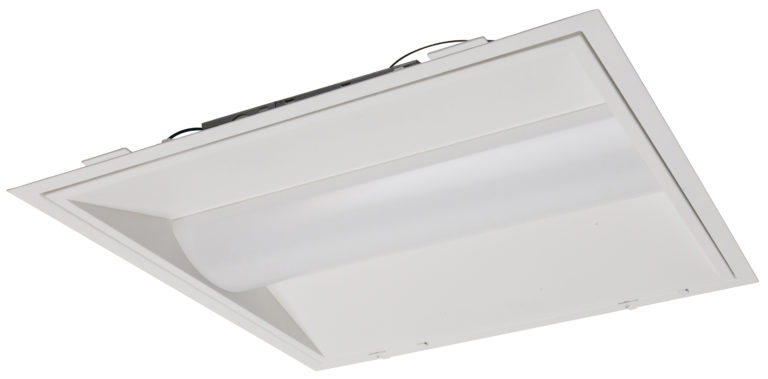

29 Watt LED Volumetric Retrofit 2’x2′ 5000K 0-10V DIM

Item No: VR29UQT250DLP

Our Volumetric Retrofit combines a one piece frame and stylish LED lamp, creating a high end look that can be installed in existing troffers in just minutes. The patented design utilizes a unique tab/cam system that makes it a universal fit for T-bar ceiling grids. The seamless design means excellent bug and dirt control. There is no need to raise the troffer or compromise the ceiling plenum during installation.The sturdy, steel frame ensures support for the lamp and the safety lock feature firmly holds the assembly in place.

With an 100,000 hour rated life and backed by a 10-year warranty, this lamp will not only deliver years of maintenance fee, quality light, but also years of drastic energy cost reduction.

Available in 29 or 39 Watt options that deliver 125 lm/W. Available in a variety of color temperatures, making it the perfect high-end upgrade for most commercial fluorescent troffer applications.

Request Pricing


Product Information:

Shape:
2x2
Brand:
LED Volumetric Retrofit
Watts:
29
Voltage:
120-277
Average Rated Life:
100000
Case Quantity:
2
Luminaire Lumens:
3625
CRI:
80
Color Temp:
5000
Burn Position:
Universal
M.O.L.:
21"
M.O.W.:
19"
Operating Temp:
'-4°F - 113°F
Power Factor:
>.95
Warranty:
10 Years
Beam Angle:
110°
Suitable for Damp Locations:
Yes

Applications:

  • Drop Ceilings

Features:

  • FCC
  • Instant On
  • Instant Bright
  • Dimmable
  • DLC Premium

Markets:

  • Hospitality
  • Healthcare
  • Offices
  • Warehouse
  • Retail
  • Schools
