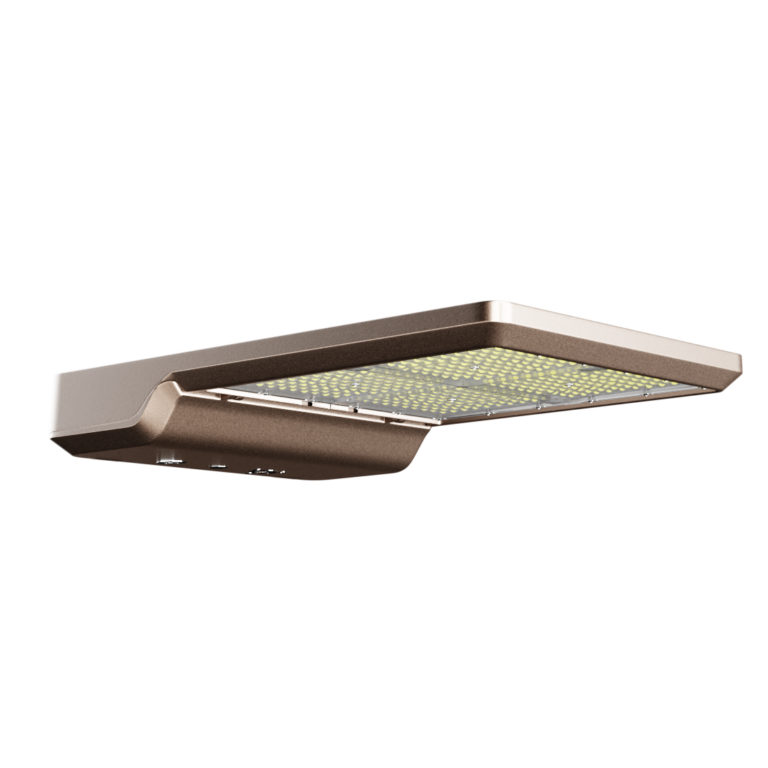

277-480V 150W LED AREA LIGHT

Item No: AL1503HV

Litetronics LED Area Lights are available in three models from 100W through 300W, each with three field-selectable wattages and CCT (3000K, 4000K and 5000K). The standard unit is offered with 3-pin shorting cap, pluggable sensor socket, and Type III distribution (Type II, IV, & V distributions available), and 277-480V. Optional Sensors include PIR (SC005), Microwave (SC006) and our LiteSmart Sensor (SC008) enabling the same energy saving control but can be setup and managed on a group level via the LiteSmart mobile app to meet code and local ordinance.

In addition, Litetronics offers optional slipfitter, direct fixed, direct rotatable, trunnion, and yoke mounts.

Request Pricing


Product Information:

Brand:
LED Area Lights
Watts:
150
Voltage:
277-480V
Average Rated Life:
50,000 hrs.
Luminaire Lumens:
14,000 | 17,500 | 21,000
CRI:
80
Color Temp:
3000K | 4000K | 5000K
Finish:
Matte Powder Coat
Operating Temp:
-40F to 122°F (-40°C to 50°C)
Power Factor:
≥.95
Warranty:
5 years
Beam Angle:
155°
THD:
≤ 20%
Usage:
Outdoor
Lumens/Watt:
140
Suitable for Damp Locations:
Yes

Applications:

Features:

  • FCC
  • Wet Location Rated
  • Outdoor Rated
  • Bug Rating B3-U0-G3

Markets:

  • Car Dealership
  • Schools
  • Campuses
  • Day Care
  • Parking Lots
  • Commercial
  • Transportation Hubs
  • Retail
  • Event Centers
  • Industrial Yards
