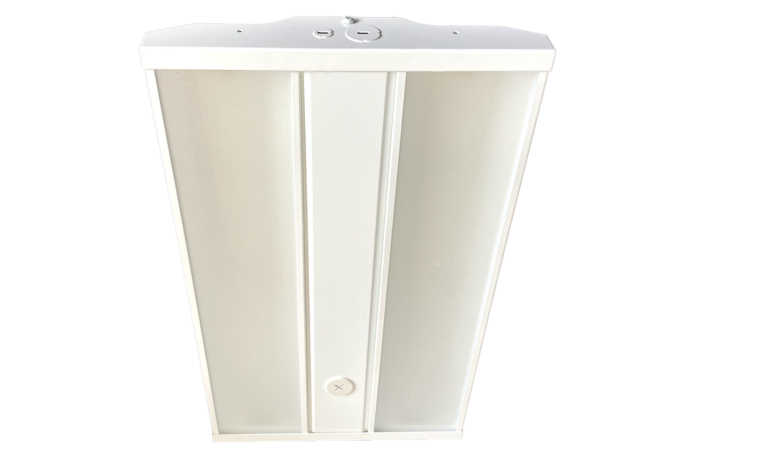

155W Linear High Bay Gen 4 With Sensor Socket

Item No: LHB15550

The LED Linear High Bay goes above and beyond the standards, delivering top-of-the-line efficiency and versatility that results in a truly optimized approach to each application.

All LHB units can accommodate a pluggable sensor that enables increased energy saving features such as occupancy sensing and daylight harvesting, both of which can be adjusted via remote control.

Our Smart Sensor enables the same energy saving features, but can be setup and managed on a group level via the LiteSmart mobile app or LiteSmart Plus iPad app.

The fixture also offers versatility in installation. It comes standard with 6’ suspension cables and a 6’ cord, making it an easy upgrade from linear fluorescent fixtures. Pendant or surface mounting kit options available.

Request Pricing


Product Information:

Shape:
10.24" x 22.84” x 1.8”
Watts:
155
Voltage:
120-277V
Average Rated Life:
50,000 hrs.
Initial Lumens:
24,000
CRI:
80
Color Temp:
5000K
Finish:
Powder Coat
Operating Temp:
-4°F to 122°F (-20°C to 50°C)
Power Factor:
≥.95
Warranty:
5 Years
Beam Angle:
95° x 110°
THD:
20%
Lumens/Watt:
150
Suitable for Damp Locations:
Damp

Applications:

  • Warehouse & storage
  • Industrial facilities
  • Sports facilities & gyms
  • Manufacturing facilities
  • Retail centers

Features:

  • Pluggable sensor (enabling occupancy sensing or daylight harvesting)
  • Compatibility with LiteSmart mobile app and LiteSmart Plus iPad app
  • CCT 5000K
  • UL rated for damp locations
  • DLC 5.1
  • 50,000-hour rated life
  • 5-year warranty
  • High Grade PMMA, with Frosted Lens for glare control
  • 277V-480V High Volt Made to Order
  • 0-10V dimming
  • Emergency battery backup available
